Multi Screen®
MS 36 Pro
DOUBLE TROMMEL
screening machines
up to 100 m³/h screening performance
The machine can be operated
electrical. Optionally with a petrol
or diesel generator.
electrical. Optionally with a petrol
or diesel generator.
Screening in 3 fractions
Our
VERSATILE SOLUTION

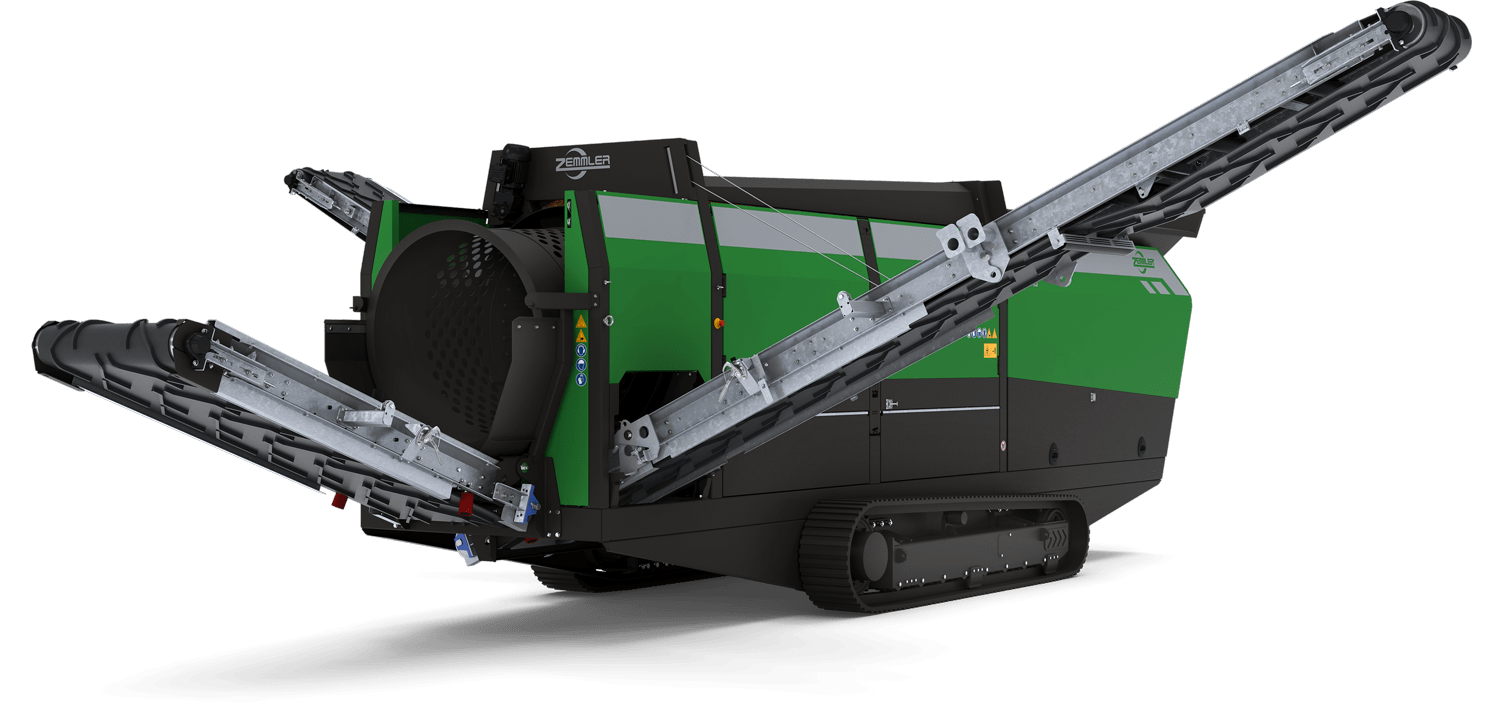

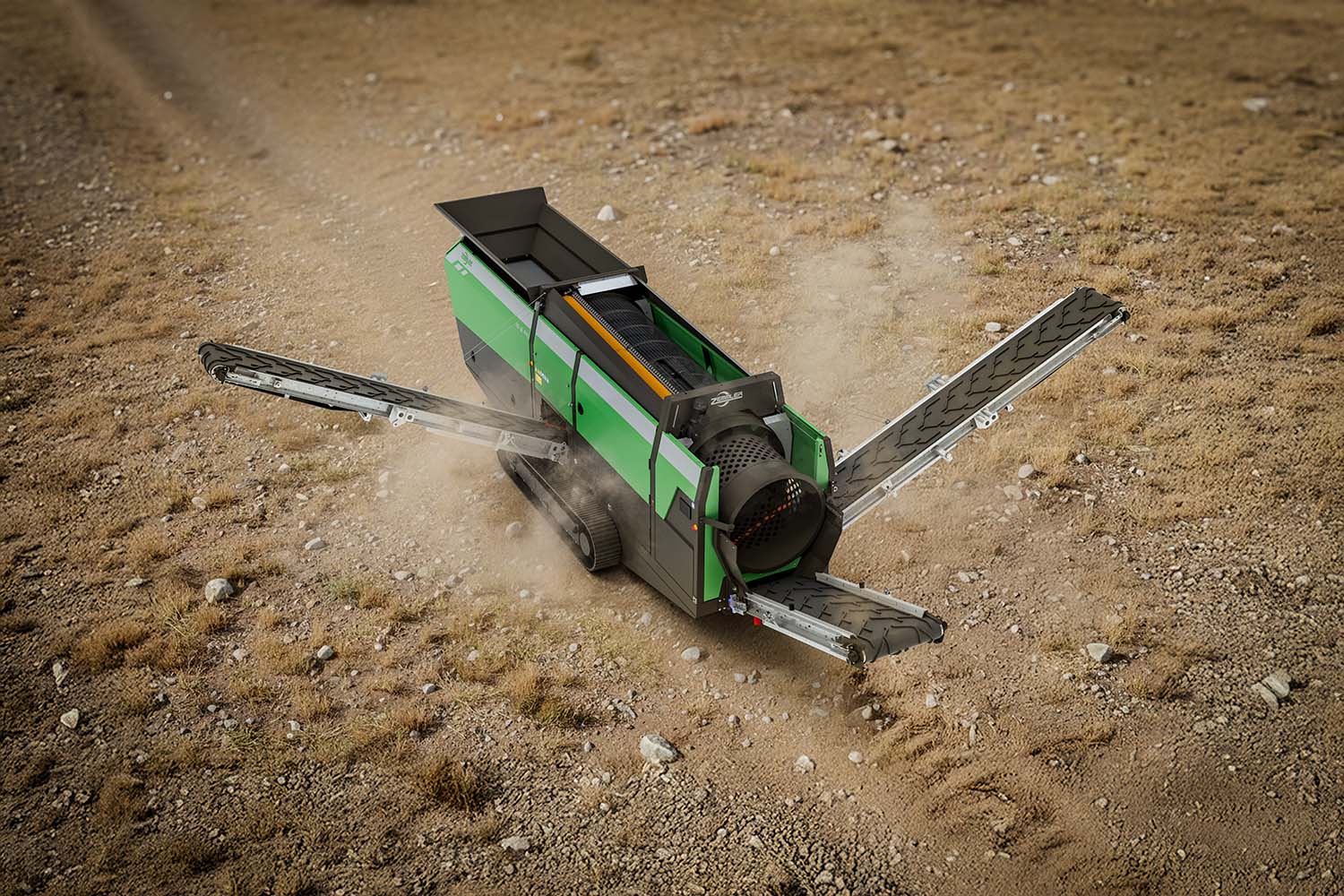

The trommel screening machine for true professionals.
With its compact design and tracked chassis, the MS 36 Pro can be
used flexibly and is easy to transport, even in a container. The fully
electrical drive ensures quiet, low-emission and energy-efficient
operation.
used flexibly and is easy to transport, even in a container. The fully
electrical drive ensures quiet, low-emission and energy-efficient
operation.
The MS 36 Pro is also equipped with a mobile control
unit and an integrated telemetry module that enables real-time
monitoring and remote maintenance. It also impresses with its ser-
vice-friendly plug-&-play design and intuitive mobile control, which
makes maintenance and operation particularly easy. This makes
the MS 36 Pro the reliable solution for professionals who value per-
formance, versatility and ease of use.
unit and an integrated telemetry module that enables real-time
monitoring and remote maintenance. It also impresses with its ser-
vice-friendly plug-&-play design and intuitive mobile control, which
makes maintenance and operation particularly easy. This makes
the MS 36 Pro the reliable solution for professionals who value per-
formance, versatility and ease of use.
Specialized in these
requirements
- Recycling
- Civil engineering
- Gardening and landscaping
- Municipal operations
Thanks to double trommel technology
Special applications
- Horse grounds
-
Artificial turf-
recycling
- Playgrounds
- Golf courses
7 t
Maximum weight
Electrical drive
optional external
power generator
Double trommel
technology
Tested
safety system
Interchangeable
wire screen
Tracked chassis
With mobile control and including a telemetry package
Technical data

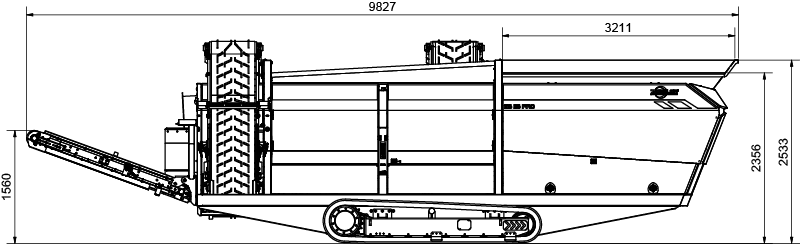

Trommel length
3,482 / 4,372 mm
Hopper
Volume 2.2 m³
Loading width 3,210 mm
Loading width 3,210 mm
Weight
max.
Transportation
Tracked chassis
Trommel diameter
1,300 mm
Total screening area
ca. 23 m²
Drive
Electric (32 A), optional diesel generator or battery pack

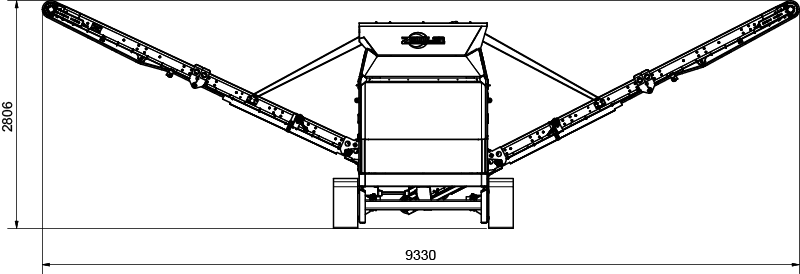

Transport measurements (LxWxH)
8,058 x 2,540 x 3,190 mm,
7,913 x 2,215 x 2,550 mm Container
7,913 x 2,215 x 2,550 mm Container
Advantages of the MS 36 Pro
at a glance
- Pure-electric, low-maintenance drive
- Modern mobile control instead of control cabinet, especially suitable for harsh environments
- Easy commissioning & installation
- Telemetry & GPS incl. faster access for dealer & manufacturer service, real-time monitoring & remote maintenance
- New operating concept intuitive user guidance with clear display of all relevant information at a glance
- Predefined programs
- Storage of programs for repeatable processes
- New touch display changed position: to the rear and higher
- Modern, dark design („Dark Theme“) for better readability
- Decentralized frequency inverter for improved cooling of the drives (avoidance of overheating problems)
- Plug-and-Play-Design All belts & electrical elements
- Load cut-off Belt feeder Overload cut-off
- Longer service life / corrosion-resistant no perforated plates / sheet metal doublings, no (internally) unpainted hollow profiles
- Variable spare parts trommel motors, chassis etc. are available with a multi-supplier strategy – less dependency in the event of supply bottlenecks
- New drive with belt smoother running and maintenance-free up to 10,000 h (no lubrication of the chain, no changing of chain or sprocket)
- Service plus Plug-and-play cabling, complete belt removal in 3 steps
- Safer Intervention protection, shutdown, position of the display (rear)
- Easier to maintain Large doors for better access
- Container-compatible Shipping/transport/containerization possible if the belts are dismantled
Additional equipment

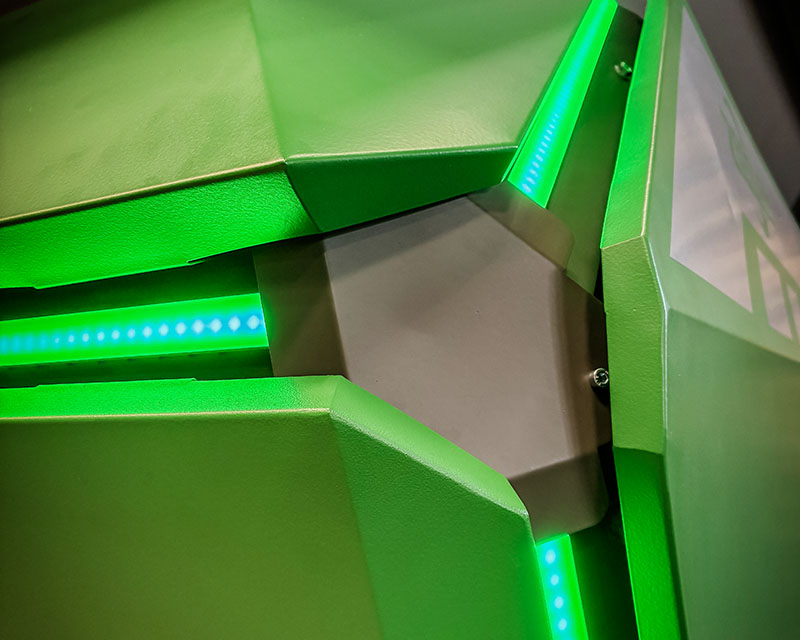

LED ambient lighting
Multicoloured with machine status display

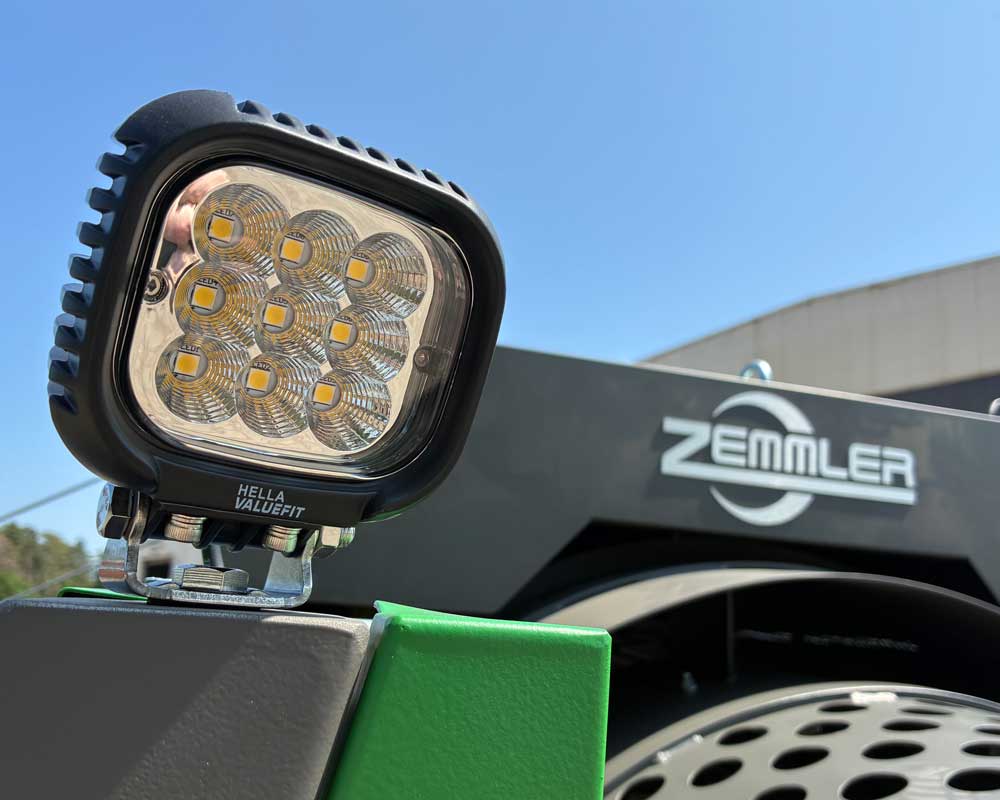

LED spotlights

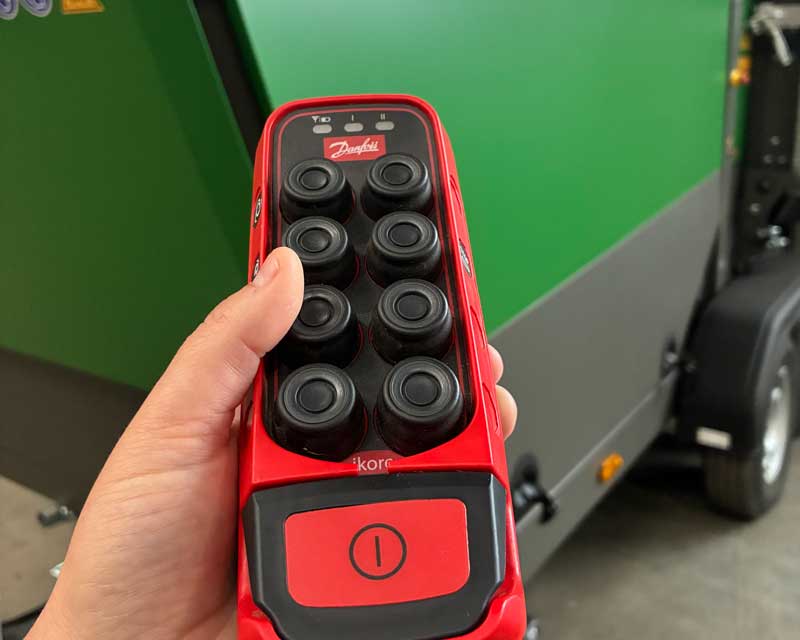

Remote control
Processable
materials
Sand
Topsoil
Gravel
Wood chips
Substitute fuels
Limestone
Waste
Grit / chippings
Wood waste
Building rubble
Compost
Thanks to innovative
double trommel technology
With our MULTI SCREEN® screening systems, various materials can be easily screened and recycled thanks to innovative double trommel technology. Interchangeable wire screen linings enable optimum adaptation to individual requirements.
